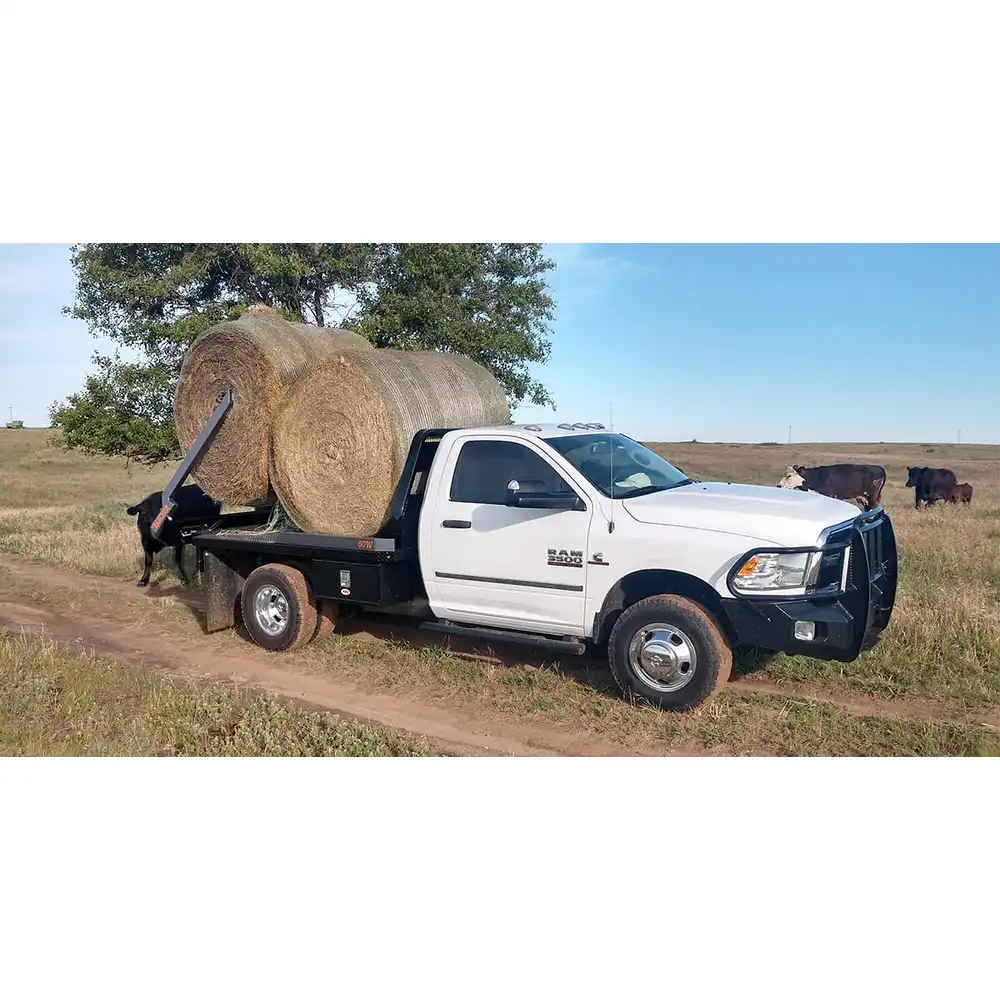

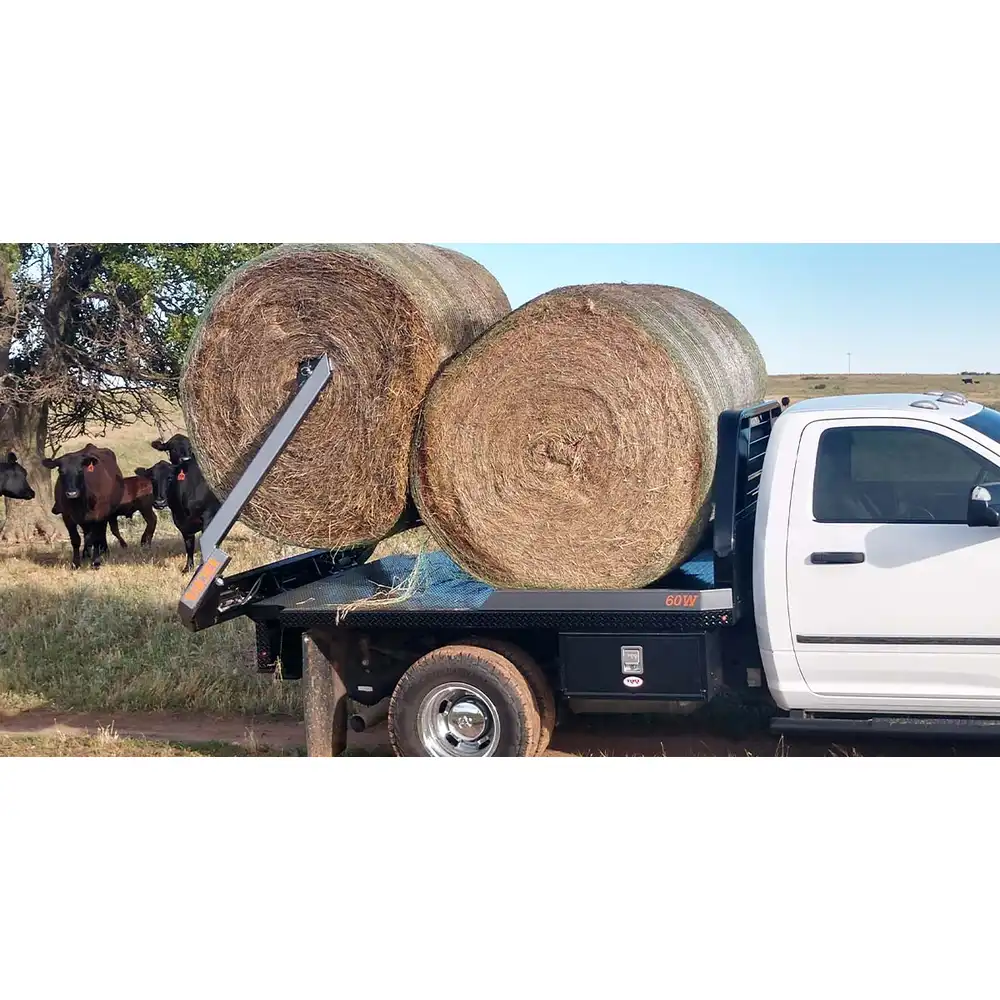

Rancher Bale Beds

Rugged. Durable. Affordable.
Today’s agricultural economy demands smart business decisions. With this in mind, C5 Manufacturing created the Rancher Bale Bed. Built on the same principles of the legendary Chisholm Trail Bale Bed and adhering to the same strict build quality and materials, the Rancher Bale Bed will give you all it has and then some.
Local Pick-up Only

New Power Unit
A new, faster electric over hydraulic power unit is standard with every Rancher Bale Bed. With piloted check valves on each hydraulic circuit and a 12 percent faster power unit, the Rancher Bale Bed will move your hay safely and faster than ever before.

Synchronized Arm Cylinders
The Rancher Bale Bed uses phasing arm cylinders to create synchronized arm movement. Unlike the independent arm control of the Chisholm Trail Bale Bed, the Rancher Bale Bed arms go in and out together. It’s a simpler, more economical system.

Free-Float Arm System
The free-float arm system allows you to unroll hay while maintaining full contact with the ground over rough terrain. This function helps to prevent skips and thick blankets of hay, allowing even distribution of feed and reducing waste.

Locking Valve System
The power unit on every Rancher Bale Bed utilizes piloted check valves on all hydraulic circuits, ensuring a safe way to haul and unroll hay.

Additional Features

Two lifetime-guaranteed toolboxes, either Chandler, RKI or Dutec
Heavy duty 2 x 4 x 3/16′ rounded bent tube headache rack with louvers
Tethered hand control
LED lighting throughout
Rattle-free doors
2- 5/16′, 30,000 pound rated gooseneck hitch with 1′ rise, recessed in the bed with door closure
Spinners
1/8” Treadplate floor with component access doors- bed can be serviced from the ground
Mudflaps
Sideboards
2 -phasing cylinders
Lifetime guarantee on bale arms
350 Amp fuse and fuse block
D-ring tie-downs
Two-part urethane primer and paint

Safety Features

Easy access to the powertrain through large access doors
Highly visible warning and caution decals
Ruggedly built all steel construction
